The conceptual design is the most important phase in realizing the design intent of architects and clients. To this
end we work in conjunction to develop designs that meet with the aesthetic intent while being structurally sound.
This is achieved using photo realistic rendered 3D models on all our projects to allow our clients to completely
visualize and understand the proposed structure.
Thereafter we undertake the completed detailed design of the structure including full sets of fabrication/shop
drawings for the fabric, steel and cable elements of the structures. We are also able to provide detailed design
and drawings for concrete foundations if required,
All our design work is carried out by professional engineers who specialize exclusively in the design of tensile
structures and as such we provide a professional engineering sign-off for all our projects.
Using the latest CAD technologies and in-house IXForten 4000 software for tensile structure design, we offer the
complete service, from concept visualization (in CAD or 3D), through to form finding, load analysis, patterning and
designing the critical interactive junction between steel and fabric.
Our Architects and Structural engineers’ holistic approach aims at developing optimal structures that also meet
architectural, economic, and construction requirements.
Fabric Form and Shape:
Tensile structures are all made from 3
three basic forms as follows:

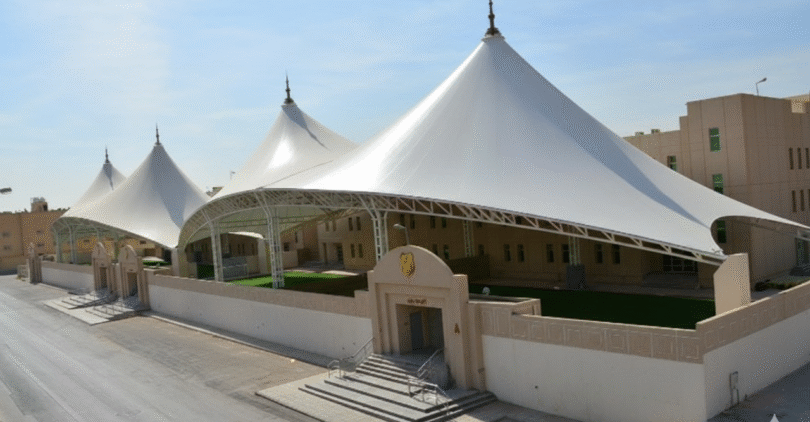

A cone shape,
characterized by a central peak
An arched shape, usually characterized by
a curved arch design
An arched shape, usually characterized by
a curved arch design
It must be noted though that there is a lot of freedom in the design of the fabric form and the design can take on an infinite number of forms, the only major constraint being that the fabric should not be flat, as the ‘double curvature’ exhibited by tensile structures is actually what keeps them structurally stable and enables them to resist wind and other live loads. The easiest way to develop a design is to get an idea of a desired shape or form (the numerous images on our site will get you started) and then discuss that idea with us. We will then aide you to conceptualize the design to meet your aesthetic desires while retaining the required structural integrity.
